INTRODUCTION TO DECORATIVE STAINLESS STEEL TUBE MILL

On this page we’d like to introduce our Decorative Stainless Steel Tube Mill to you.

This production line retains the high-precision processing characteristics of WEIYI's welded pipe equipment, providing stable operating performance and controllable production efficiency. It can assist manufacturers in effectively stabilizing product quality and increasing production output. Normally, the decorative pipe production line uses TIG welding. However, laser welding is becoming increasingly popular because of its high speed.

PRODUCTION PROCESS

Uncoiling → Pre-forming → Forming → TIG welding→ Outside bead polishing → Fine sizing and Straightening → Length fixing and Cutting → Unloading

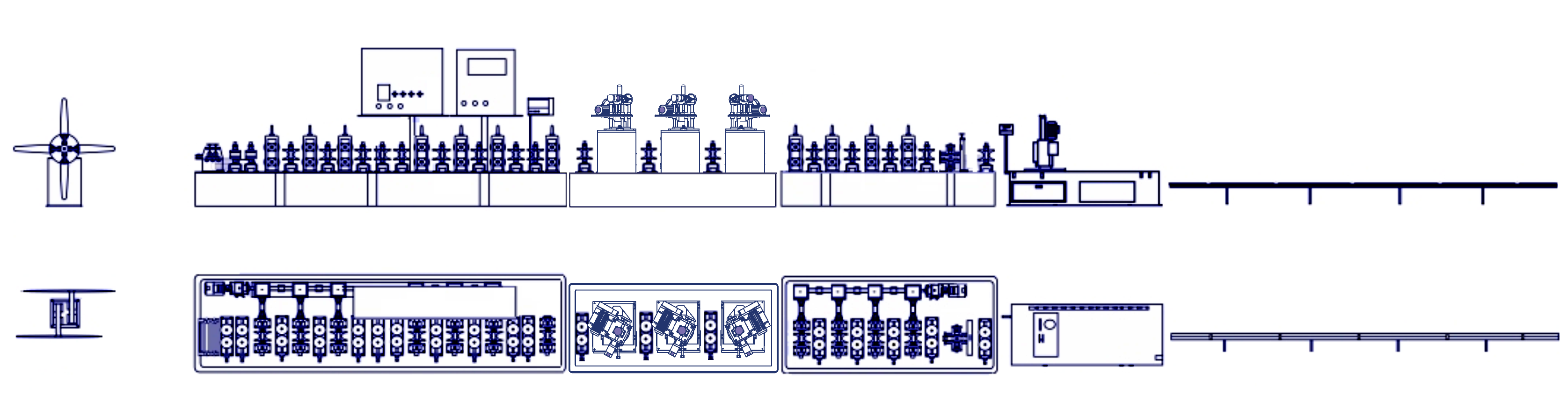

furniture tube production line

(The above layout is for reference only; the actual product design shall prevail.)

TECHNICAL PARAMETERS OF DECORATIVE STAINLESS STEEL TUBE MILL

Model	Horizontal Shaft	Vertical shaft	Welded pipe		Motor power
Model	Dia.(mm)	Dia.(mm)	Dia.(mm)	THK	Motor power
WY.HG-Z30	∅40	∅20	ф4 ~ ф16	0.2~1.2mm	5.5KW*2
WY.HG-Z40	∅40	∅25	ф12.7~ ф38.1	0.3~2.0mm	5.5KW*2
WY.HG-ZD40	∅40	∅30	Ø25.4~Ø50.8	0.3~3.0mm	7.5KW*2
WY.HG-Z50	∅50	∅30	Ø50.8~Ø76.2	0.5~3.5mm	11KW*2
WY.HG-Z60	∅60	∅40	Ø63.5~Ø114	0.6~4.5mm	15KW*2
WY.HG-Z80	∅80	∅50	ф88.9 ~ ф168	1.5 ~ 4.5mm	22KW*2
WY.HG-Z100	∅100	∅60	ф108 ~ ф219	2.0 ~ 6.0mm	30KW*2
WY.HG-Z120	∅120	∅80	ф219 ~ ф325	2.5 ~ 8.0mm	50KW*2
WY.HG-Z130	∅130	∅85	ф273 ~ ф406	2.5 ~ 9.5mm	75KW*2
WY.HG-Z150	∅150	∅90	ф325~ ф508	3.5 ~12mm	90KW*2
WY.HG-Z160	∅160	∅100	ф406~ ф630	4.0 ~13mm	110KW*2

The above is our standard tube mill. We can also adjust the configuration of the production line according to customers' actual production scale and product specification requirements to provide you with matching equipment solutions that fit your production needs.

DECORATIVE TUBE MILL DETAILS

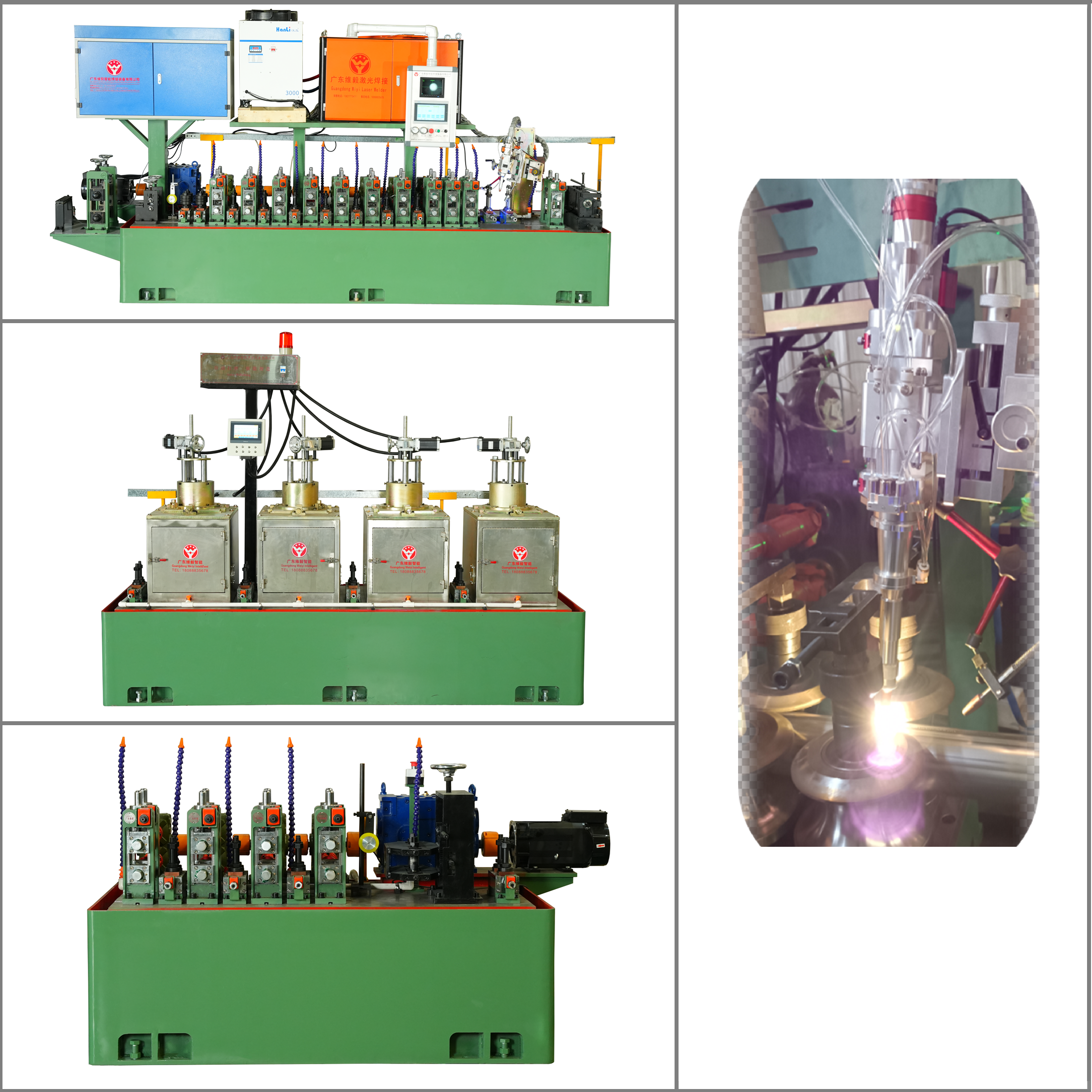

furniture tube mill

Stainless steel decorative tube production line of WEIYI is specially developed and optimized for the production of decorative stainless steel pipes used in fields such as stair handrails and furniture. It can stably produce pipes of different specifications, including round tubes, square tubes, rectangular tubes, and other special-shaped tubes, with a smooth pipe surface and uniform welding seams.
